Description
This Heavy Duty Mounting Bracket is designed for securely mounting 4040 T-slot aluminium extrusion profiles to machine frames, floors, benches, conveyor structures, and automation systems.
The reinforced construction features side gussets for increased rigidity and an adjustment slot to assist with positioning and alignment during installation. The heavy-duty base provides a stable mounting point for 40 × 40 mm aluminium profiles in industrial and mechanical applications.
Key Features
- Designed for 4040 (40 × 40 mm) T-slot aluminium profiles
- Heavy-duty reinforced construction
- Gusseted design for improved strength and rigidity
- Slotted mounting section for adjustment and alignment
- Strong base plate with mounting holes
- Suitable for vertical aluminium extrusion mounting
- Ideal for machinery, conveyor and automation frames
- Suitable for industrial and DIY engineering projects
Typical Applications
- Conveyor systems
- Machine frames
- Automation equipment
- Workstations and benches
- Machine guarding
- Aluminium extrusion structures
- Industrial equipment supports
- Custom engineering projects

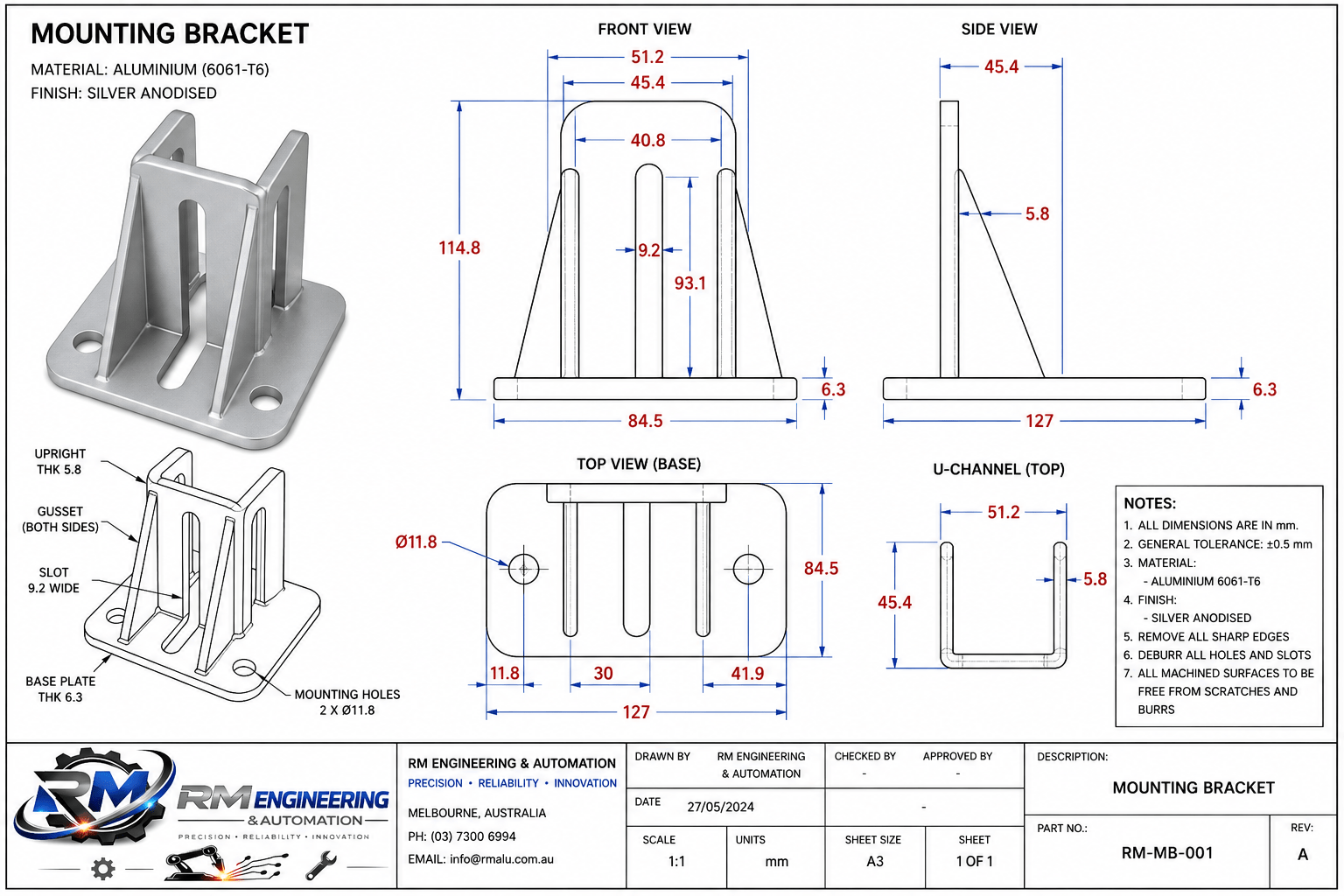

Main Dimensions
- Base: 127 × 84.5 mm
- Overall height: 114.8 mm
- Base thickness: 6.3 mm
- Upright thickness: 5.8 mm
- Internal width: 40.8 mm
- Adjustment slot width: 9.2 mm
Compatible Profile: 4040 / 40 × 40 mm T-Slot Aluminium Extrusion
Please check the dimensions against your aluminium profile and application before ordering.
